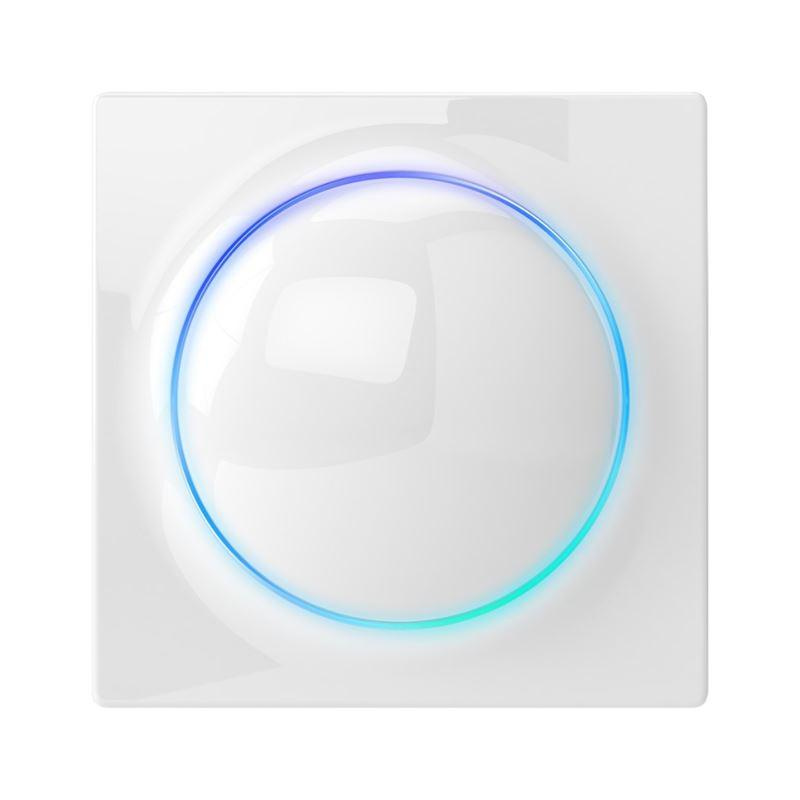

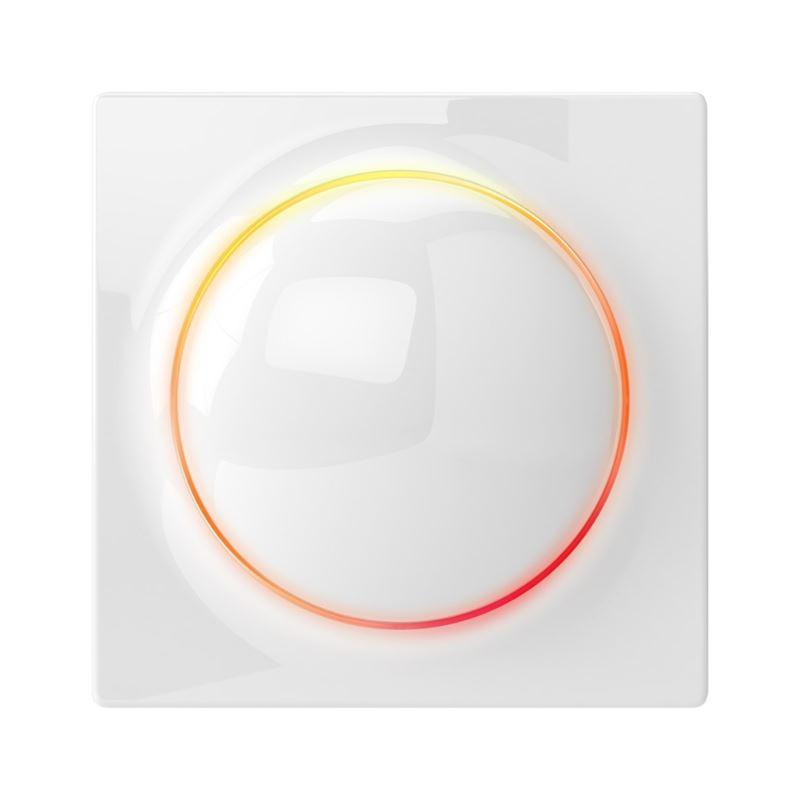

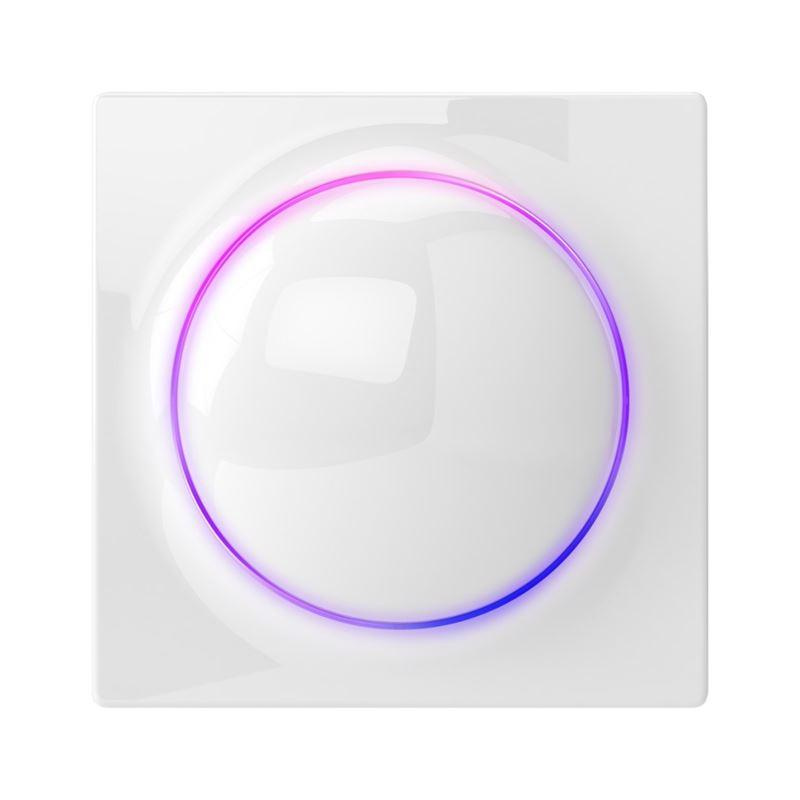

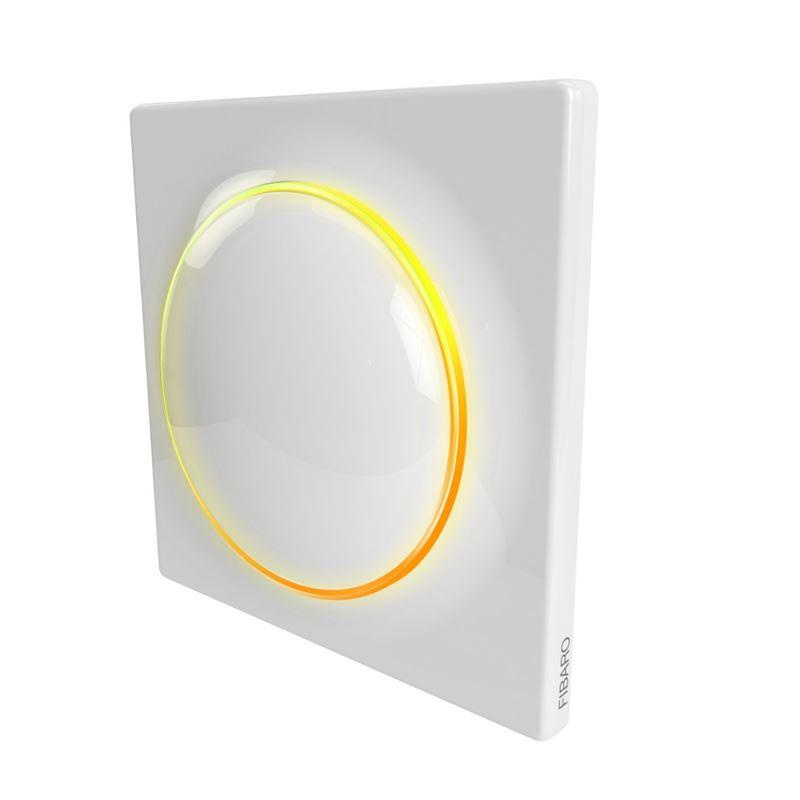

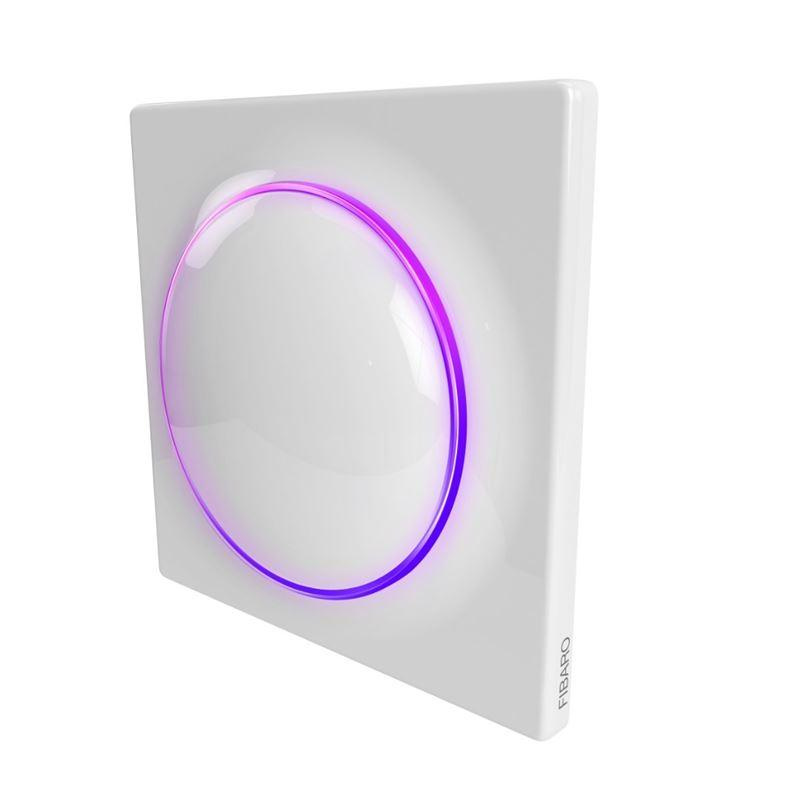

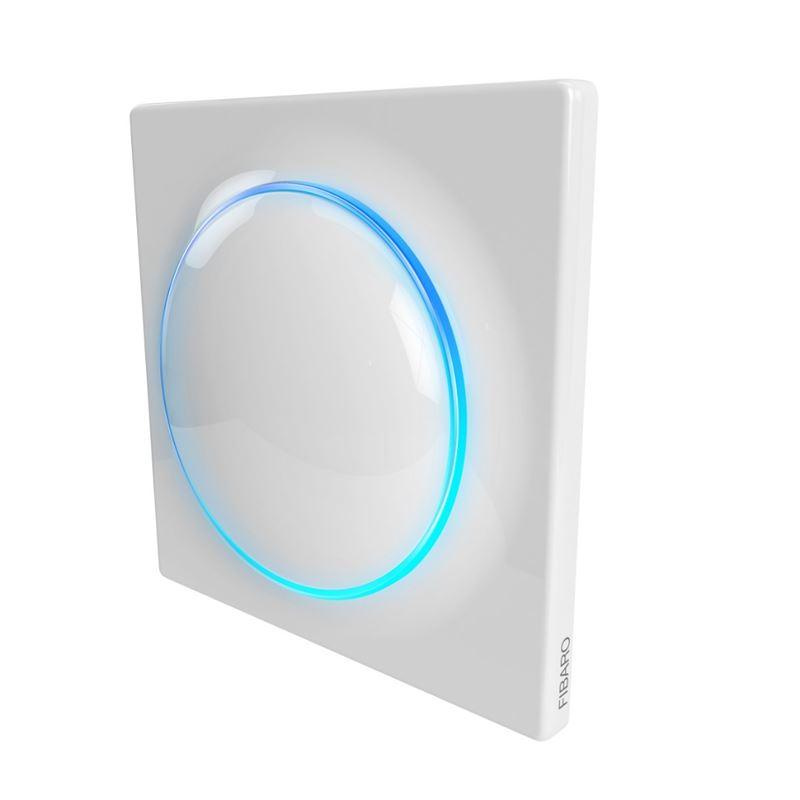

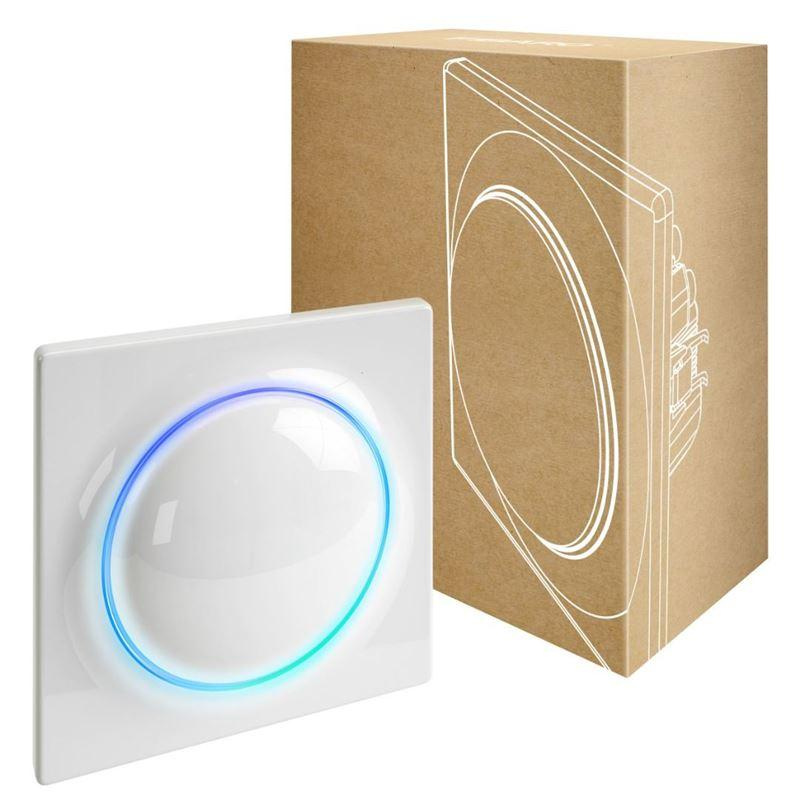

FIBARO Walli Roller Shutter - Intelligent Roller Shutter Controller

Product Features:
One-click management of several blinds and scenes.
Remote control of curtains and blinds.
Management of blinds and shutters through voice commands.
Remote garage door management.
Customize the LED ring to the user's preference.
Monitoring of power and energy consumption.

POWER SUPPLY AND INSTALLATION:
Power supply: 110-230V~ 50/60 Hz
Recommended overcurrent circuit breaker: 10A type B fuse (EU), 13A type B fuse (Sweden)
Actuator: micro contact break element µ
Required limit switches: electronic or mechanical
Recommended cross-sectional area of wires: 1.5 - 4.00 mm2
For mounting in boxes: Ř = 60 mm, dg. ? 40 mm
Operating temperature: 0-35°C
Ambient humidity: 10-95% relative humidity without condensation

APPLICATIONS:
Rated current: 4A - compensated power factor (induction) motors, 13A - resistive motors
Supported load types:
single-phase AC motors
resistive

COMMUNICATIONS:
Radio protocol: Z-Wave
Transmission power: EIRP max. 6 dBm
Radio frequency: 868.4 or 869.85 MHz EU, 869.0 MHz RU
Range: up to 50 m in open areas, up to 40 m in buildings (depending on building materials, building layout and construction, and terrain)

DIMENSIONS:
Height x Width x Depth: 86 x 86 x 51 mm
