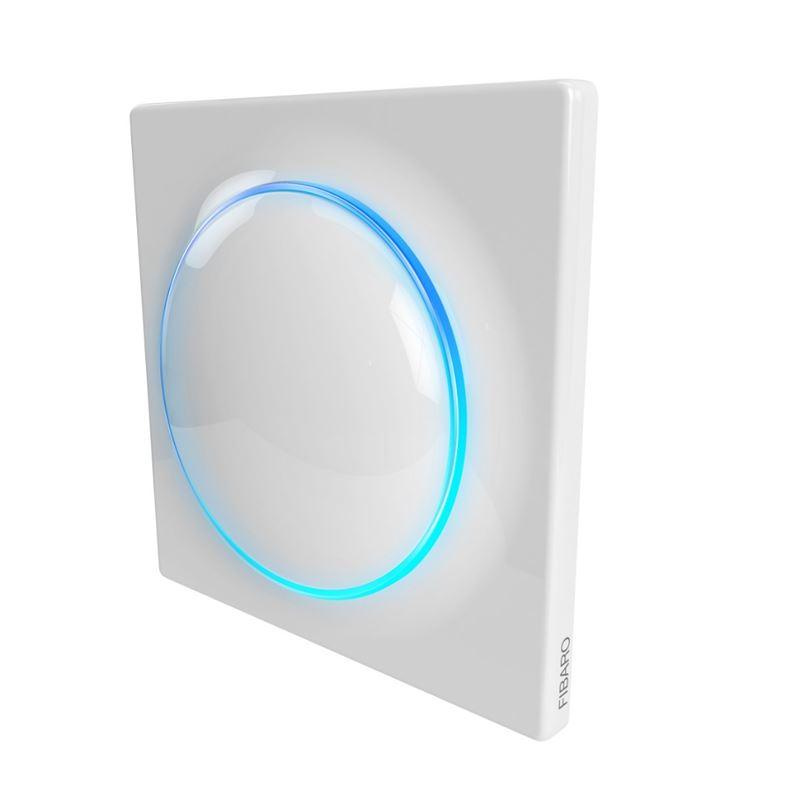

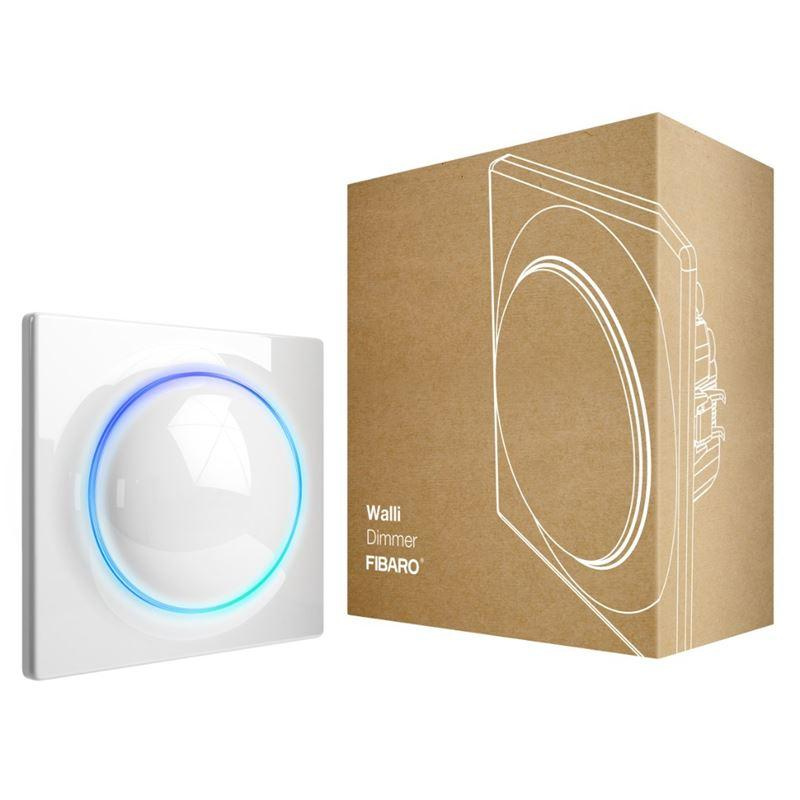

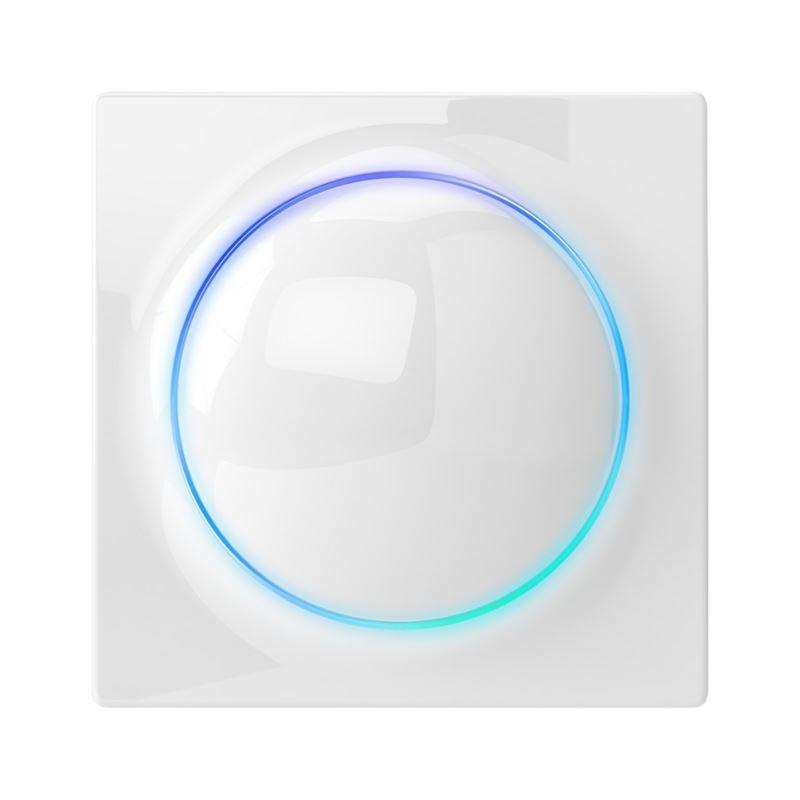

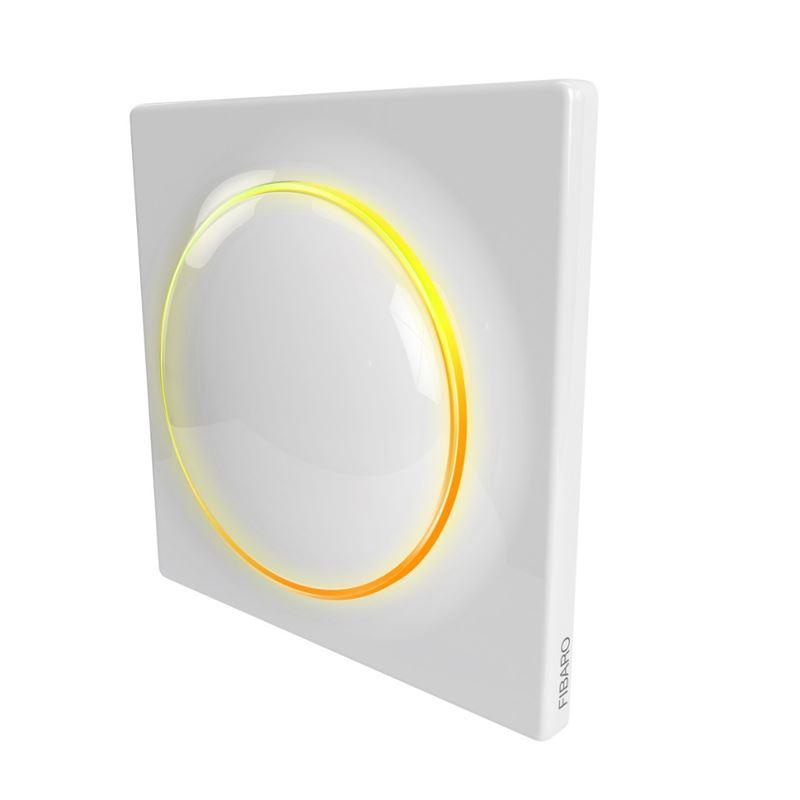

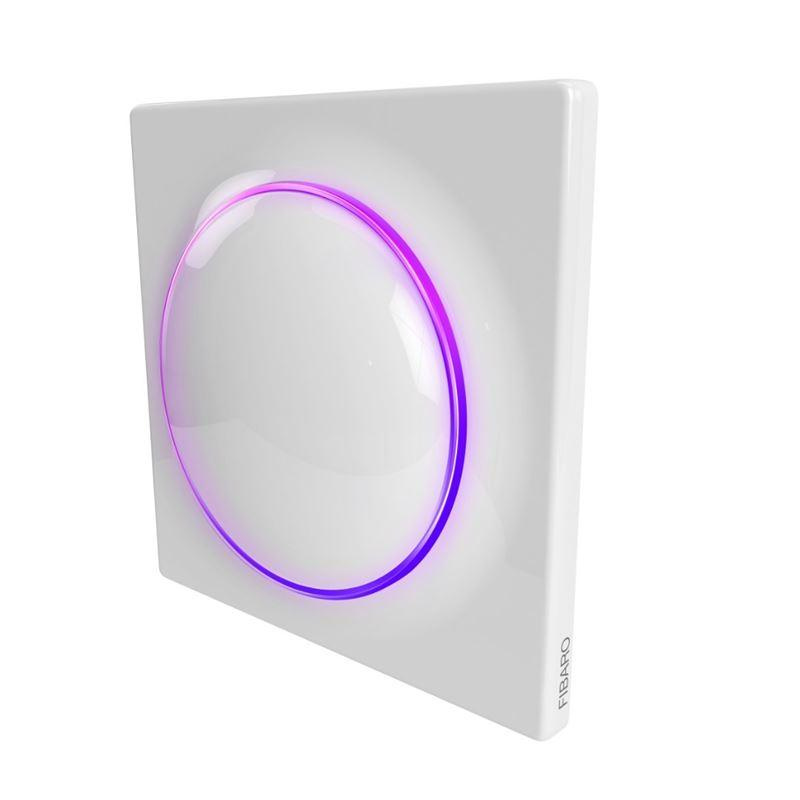

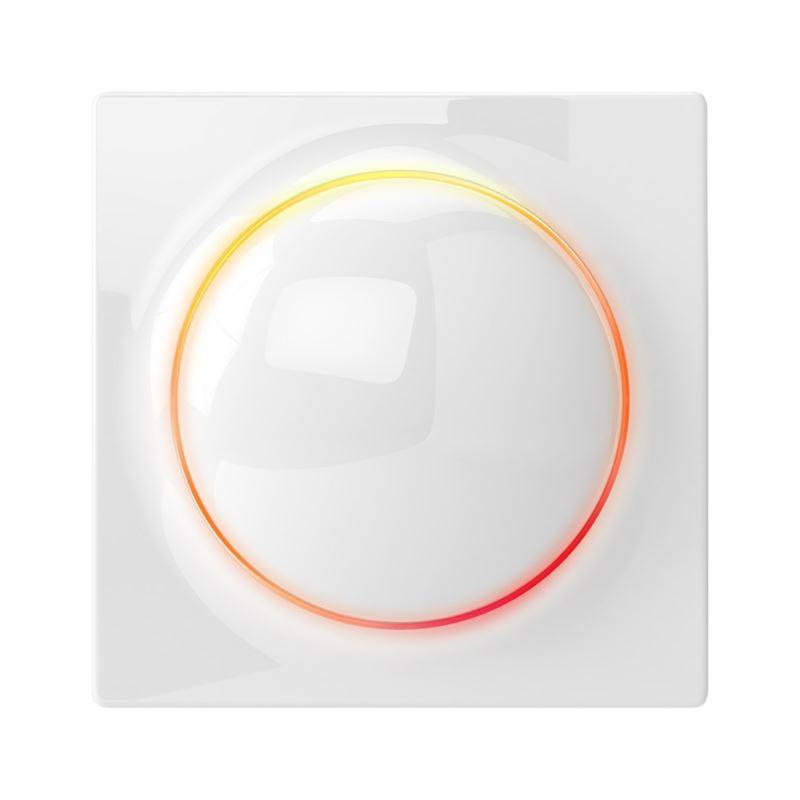

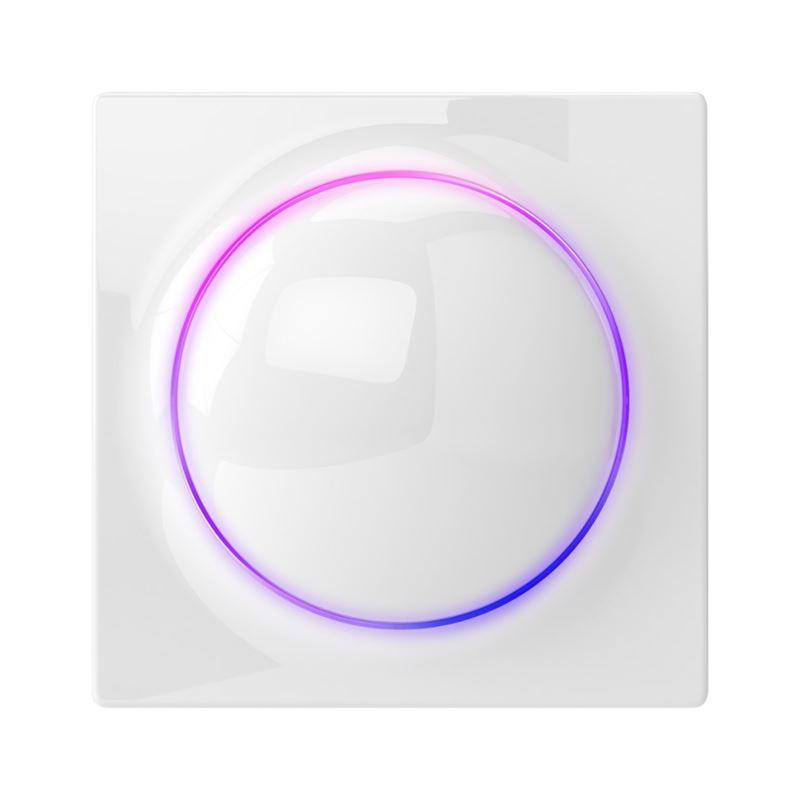

FIBARO Walli Dimmer - Smart Dimmer
- Product Features:
- Remote lighting management.
- Control of lighting through voice commands.
- Customize the LED ring to the user's preference.
- Notifications of failure of electrical equipment.
- Monitoring of power and energy consumption.
- POWER SUPPLY AND INSTA
Description
Product Features:
Remote lighting management.
Control of lighting through voice commands.
Customize the LED ring to the user's preference.
Notifications of failure of electrical equipment.
Monitoring of power and energy consumption.
POWER SUPPLY AND INSTALLATION:
Power supply: 110-230V~ 50/60 Hz
Recommended overcurrent circuit breaker: 10A type B fuse (EU), 13A type B fuse (Sweden)
Actuator: micro contact break element µ
Recommended cross-sectional area of wires: 1.5 - 4.00 mm2
For mounting in boxes: Ř = 60 mm, dg. ? 40 mm
Operating temperature: 0-35°C
Ambient humidity: 10-95% relative humidity without condensation
APPLICATIONS:
Supported load types:
resistive load conventional incandescent and halogen lamps
resistive/capacitive load fluorescent lamps (compact/ with electronic ballast), electronic transformers, LEDs
load resistance-inductive magnetic transformers
Output power:
50-350W - resistive load (conventional incandescent and halogen lamps);
50-300VA - resistive-capacitive load (compact fluorescent lamps/ with electronic ballast, electronic transformers, LED);
50-300VA - resistive-inductive load (magnetic transformers);
5-50W - with Bypass 2: fluorescent and LED lamps
Number of controllable loads: 1
Actuator: solid-state electronic switch ?
COMMUNICATIONS:
Radio protocol: Z-Wave
Transmission power: EIRP max. 6 dBm
Radio frequency: 868.4 or 869.85 MHz EU, 869.0 MHz RU
Range: up to 50 m in open areas, up to 40 m in buildings (depending on building materials, building layout and construction, and terrain)
DIMENSIONS:
Height x Width x Depth: 86 x 86 x 51 mm
Remote lighting management.
Control of lighting through voice commands.
Customize the LED ring to the user's preference.
Notifications of failure of electrical equipment.
Monitoring of power and energy consumption.
POWER SUPPLY AND INSTALLATION:
Power supply: 110-230V~ 50/60 Hz
Recommended overcurrent circuit breaker: 10A type B fuse (EU), 13A type B fuse (Sweden)
Actuator: micro contact break element µ
Recommended cross-sectional area of wires: 1.5 - 4.00 mm2
For mounting in boxes: Ř = 60 mm, dg. ? 40 mm
Operating temperature: 0-35°C
Ambient humidity: 10-95% relative humidity without condensation
APPLICATIONS:
Supported load types:
resistive load conventional incandescent and halogen lamps
resistive/capacitive load fluorescent lamps (compact/ with electronic ballast), electronic transformers, LEDs
load resistance-inductive magnetic transformers
Output power:
50-350W - resistive load (conventional incandescent and halogen lamps);
50-300VA - resistive-capacitive load (compact fluorescent lamps/ with electronic ballast, electronic transformers, LED);
50-300VA - resistive-inductive load (magnetic transformers);
5-50W - with Bypass 2: fluorescent and LED lamps
Number of controllable loads: 1
Actuator: solid-state electronic switch ?
COMMUNICATIONS:
Radio protocol: Z-Wave
Transmission power: EIRP max. 6 dBm
Radio frequency: 868.4 or 869.85 MHz EU, 869.0 MHz RU
Range: up to 50 m in open areas, up to 40 m in buildings (depending on building materials, building layout and construction, and terrain)
DIMENSIONS:
Height x Width x Depth: 86 x 86 x 51 mm
