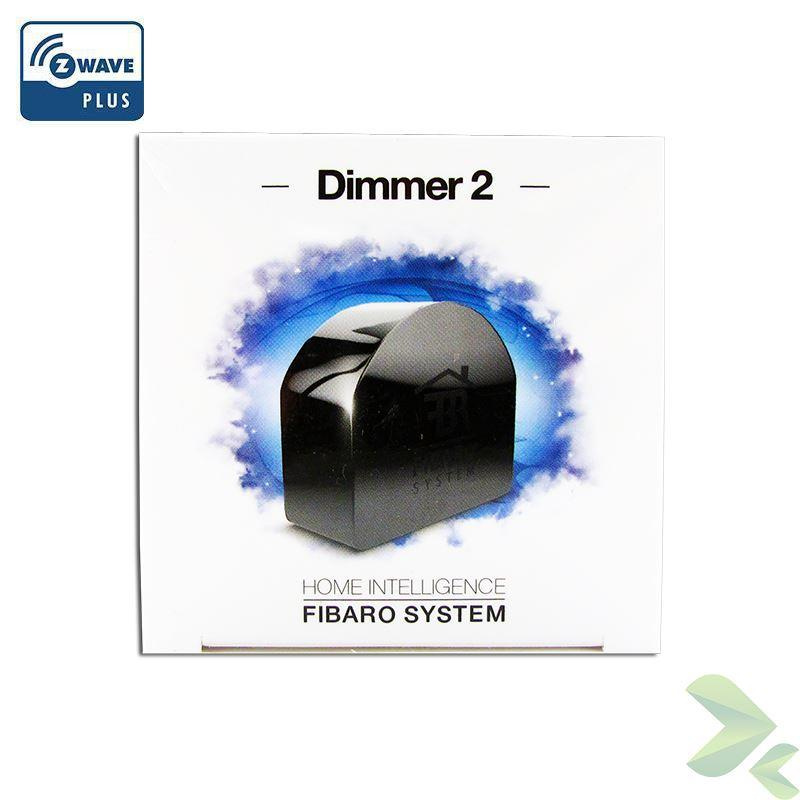

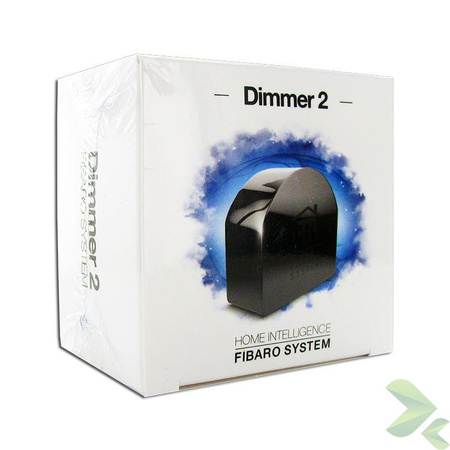

FIBARO Dimmer 2 - Z-Wave Plus Lighting Dimmer

Dimmer 2 is a universal module for regulating the intensity of lighting, which, despite its small size, combines many practical functions.

Product Features:
- Brightness adjustment
- Power switch
- Measurement of energy consumed
- Gradual illumination function

Technical specifications:
- Compatible with any Z-Wave or Z-Wave+ controller,
- The device can be controlled with FIBARO Home center or any other Z-Wave network controller
- Advanced microprocessor control
- Intelligent lighting type detection algorithm,
- Automatic selection of the optimal control mode for the load
- Function of measuring active power consumed by the load
- Soft start - soft start - gentle switching of lighting to save incandescent fibers,
- Memory of the last light level setting,
- The device works with monostable, bistable and roller shutter buttons
- Executive element: electronic semiconductor element
- Place of work: surface and flush-mounted boxes meeting national regulations and minimum box dimensions
- Power supply voltage: 100-240V~ 50/60Hz
- Power consumption: < 1.3W
- Operating temperature: 0-35°C
- For mounting in cans: O ? 50mm
- Operating current: 0.25-1.1A
- Temperature protection: 105°C
- Type of protection: required external overcurrent circuit breaker with a nominal current of not more than 10A
- Type of actuator: electronic semiconductor switching element ?
- Control methods: remotely - by radio locally - electric switch
- Radio protocol: Z-Wave (500 series chip)
- Radio frequency:
868.4 or 869.8 MHz EU;
908.4 or 916.0 MHz US;
921.4 or 919.8 MHz ANZ;
869.0 MHz RU;
- Activity factor: <1%
- Receiver sensitivity (typical):
Channel 0: -102.7 dBm
Channel 1: -99.0 dBm
Channel 2: -93.0 dBm
- Receiver bandwidth:
Channel 0: 300 kHz
Channel 1: 300 kHz
Channel 2: 600 kHz
- Maximum wired measured power: 4.5 dBm (nominally 4 dBm)
- Maximum antenna gain: 2 dBi
- EIRP power: 6.5 dBm
- Range:
up to 50m in open terrain
up to 40m in buildings (depending on building materials)
- Compliance with EU directives:
RoHS 2011/65/EU,
RED 2014/53/EU
- Dimensions (L. x width. x height.): 42.5 x 38.25 x 20.3 mm
